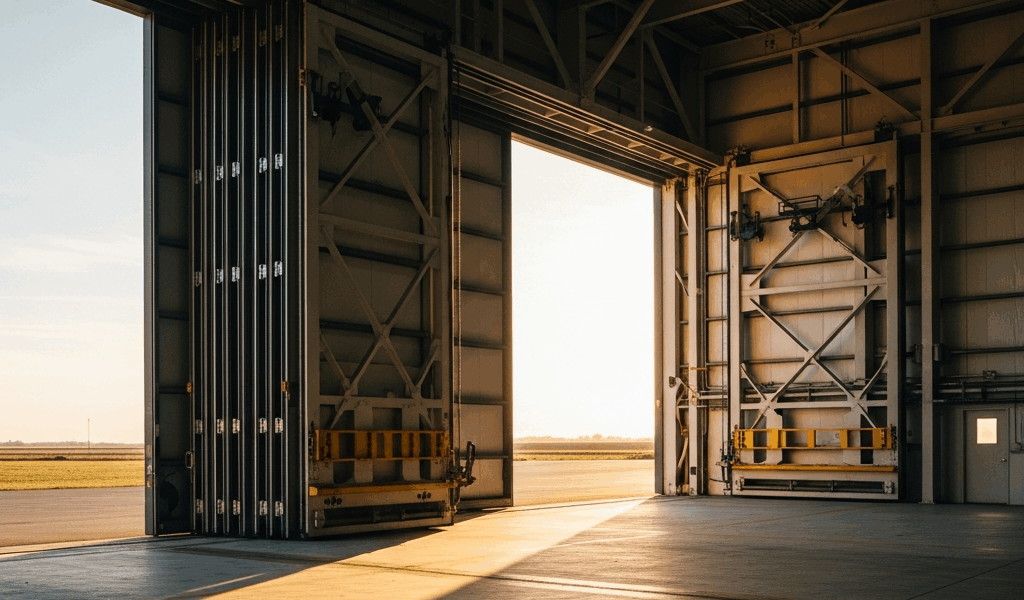

Aircraft Hangar Door Types — Bifold vs Sliding vs Hydraulic Compared

Aircraft hangar doors have gotten complicated with all the manufacturer noise flying around. As someone who’s owned or co-owned three hangars over fourteen years, I learned everything there is to know about what works, what fails, and what the sales brochures will never tell you. Today, I will share it all with you.

We’re talking a T-hangar at a small regional airport in Georgia, a 60-foot box hangar I built from scratch in Tennessee, and a shared corporate-style unit in North Carolina that came pre-equipped. Each one was a different education. This comparison is built on that — not a sales sheet.

The Four Main Hangar Door Types at a Glance

Before getting into the weeds, here’s a straight comparison table. Cost ranges come from real contractor quotes I collected between 2019 and 2023 — not inflated manufacturer estimates or decade-old forum numbers.

Rolling steel gets a brief mention here — fine for storage bays and maintenance shops, but the clearance issues kill it for anything with a tall tail. I won’t dig into it beyond the table.

Bifold Doors — The Most Common Choice

But what is a bifold hangar door? In essence, it’s a two-panel door that folds upward on itself to open. But it’s much more than that — it’s the de facto standard for general aviation across the country, and there are good reasons it got there.

Walk any FBO ramp at a regional airport. Look at the T-hangars along the perimeter. Probably 70 percent of them are running bifolds. The door splits horizontally — bottom panel hinges up and outward, folding against the top panel, which lifts toward the ceiling via a cable-and-pulley system driven by an electric motor. Most residential box hangars use a single motor, typically a 1/2 HP or 3/4 HP unit, mounted to the header. Schweiss is probably the most recognized name here, though Assa Abloy and American Door both run solid product lines. I’ve worked with Schweiss on two installs — apparently I’m a cable-system person, and their setup works for me while the strap variants never quite felt right under tension.

That’s what makes bifold doors endearing to us general aviation types. The hardware ecosystem is mature. Any decent door company can service one. So, without further ado, let’s dive into what they actually cost.

Installed cost sits between $18,000 and $55,000 for a standard 40- to 60-foot-wide opening. My Tennessee build came in at $34,500 installed in 2021 — that covered the electric operator and a secondary hand-crank manual backup. Felt fair. Quotes under $20,000 for a 50-foot bifold should raise flags. You’re looking at lighter gauge panels or a cut-rate install, and you’ll pay for it later.

What Bifold Doors Do Well

• Simple daily operation — one button, door opens fully in 60–90 seconds
• Locks securely when closed — vertical compression against the sill creates a solid weather seal
• No exterior clearance needed — the door folds upward, not outward into the apron
• Maintenance is straightforward — cables, pulleys, and motor brushes are serviceable locally
• Handles wind well when properly tensioned and latched at the sill

Where Bifold Doors Fall Short

The vertical clearance issue catches people off guard every time. When a bifold opens, the folded panel eats roughly 18 to 24 inches of vertical space at the top of the opening. On a 14-foot door, effective clearance drops to 12 feet or less once the panel is folded and in motion. Tall-tail aircraft — anything in a T-tail configuration over 13 feet — can be a genuinely tight fit.

I learned this the irritating way pulling a Piper Seneca II in at an angle and clipping the antenna. Entirely my fault. A full-height door would have made it a non-issue. Don’t make my mistake.

Wind is the other real limitation. Most bifold doors are rated to stay closed in winds up to 90 or 100 mph when properly latched — but that’s a closed door. An open bifold in 30-plus mph gusts is a liability. The panels act like a sail and put enormous stress on the header and hinge. Most experienced hangar owners won’t leave a bifold open unattended in gusty conditions. That’s just the reality.

Sliding Doors — Budget-Friendly but High Maintenance

Sliding hangar doors dominated before bifolds became standard. Still common in older hangars and budget new builds. The concept is simple — large steel panels hang from a top track and roll horizontally along the building face, either sliding to one side or splitting at center and rolling both directions.

Frustrated by a cheap track system on a rental hangar I used briefly in 2018, I started keeping detailed notes on what goes wrong with these things and when. Installed cost is genuinely lower — realistically $10,000 to $22,000 for a 50-foot opening, depending on panel weight, track quality, and whether you’re adding a motorized operator. Manual sliding doors on hangars 40 feet and under can come in under $10,000 for owners willing to push them manually every morning.

That’s what makes sliding doors endearing to budget-conscious builders. The entry price is hard to beat. The maintenance burden, though, is real — the top track collects debris, gets bent by temperature cycling and settling, and the rollers wear faster than anyone admits upfront. A misaligned track on a 1,000-pound panel isn’t a Saturday fix. You’re calling a door company and waiting a week.

What Sliding Doors Do Well

• Full vertical clearance — the door never encroaches on opening height, which matters for tall aircraft
• Lower initial cost than bifold or hydraulic options
• Heavy insulated steel panels hold temperature reasonably well
• No overhead mechanism to fail — simpler mechanically than bifold systems
• High wind resistance when closed and properly pinned

Where Sliding Doors Fall Short

The space requirement kills many layouts. A sliding door needs clear wall space beside the opening equal to the door width. A 60-foot hangar with sliding doors needs 60 feet of clear wall next to that opening — the overall building has to be significantly wider than the aircraft you’re storing. That’s expensive square footage most builders don’t account for until they’re looking at a site plan and the math doesn’t work.

Track maintenance compounds over time. Dirt, bird debris, ice in northern climates — it all collects in the bottom track and the top track. Most sliding door failures I’ve seen on pilot forums come down to neglected tracks. It’s not glamorous maintenance. People skip it. Then they’re calling someone out on a Tuesday morning when the door won’t budge.

Hydraulic Doors — The Premium Option

Hydraulic hangar doors are a different category entirely. Where bifold and sliding doors are systems any competent door company handles, hydraulic doors are engineered structures. Most common on corporate flight department hangars, airline maintenance facilities, and the kind of private hangars that also feature floor drains, a crew lounge, and a full parts cabinet.

But what is a hydraulic door? In essence, it’s a single one-piece panel — sometimes two panels for very wide openings — that lifts outward and upward using hydraulic cylinders integrated into the door frame and header. But it’s much more than that mechanically. The panel rises to roughly horizontal, creating a canopy effect over the apron. When fully open, you have the complete width and full height of the opening. Nothing folds. Nothing rolls. It’s genuinely impressive to watch the first time.

Motivated by a corporate client who wanted something that looked serious, I spec’d out a hydraulic door for a 70-foot opening in 2022. Quotes came back between $115,000 and $160,000 installed — door system alone, before any electrical work or concrete modifications. For large openings over 80 feet, $200,000 is a real number. Not a typo.

Probably should have opened with this section, honestly. The price alone eliminates hydraulic doors from consideration for most individual hangar owners.

What Hydraulic Doors Do Well

• Maximum clear opening — full width, full height, every time
• No tracks, cables, or pulleys to maintain in the traditional sense
• Engineered wind ratings — typically stamped by a structural engineer for the specific install
• The canopy effect provides real weather protection for the apron during operations
• Long service life — hydraulic systems in commercial use routinely run 20-plus years

Where Hydraulic Doors Fall Short

The failure mode is something nobody talks about at airshows. Hydraulic systems develop leaks. When a bifold or sliding door fails, you typically still have a door — it just doesn’t move easily. When a hydraulic door loses pressure at the wrong moment, you can have a 3,000-pound panel held in place only by mechanical locks, or one that won’t open at all until a technician with the right diagnostic equipment arrives. That’s a specialized service call — not a local door company visit.

Operational cost is the other reality. Hydraulic fluid needs checking and changing on a schedule. Seals and cylinders need regular inspection. At a facility with full maintenance staff, that’s absorbed. If you’re an individual owner with a 70-foot personal hangar, you’re either learning hydraulic maintenance yourself or paying someone every year to do it for you.

They’re a corporate or institutional product. Full stop.

Which Door Type for Which Hangar

After fourteen years and three hangars, here’s where I actually land.

T-Hangars and Single-Aircraft Box Hangars — Bifold

For the overwhelming majority of private pilots and small aircraft owners, bifold doors are the right call. Priced right, easy to operate, and service infrastructure exists everywhere general aviation exists. Budget roughly $300 to $500 per linear foot of opening as a starting estimate — then get local quotes to ground that number in reality.

The vertical clearance reduction is manageable for most piston singles and light twins. If you’re storing a turboprop or anything with a T-tail over 13 feet, measure carefully before committing. Seriously. Get a tape measure on the actual aircraft first.

Large Corporate or Multi-Aircraft Hangars — Hydraulic

If you’re building or operating a hangar housing multiple large aircraft, serving a flight department, or needing to accommodate jets with 14-foot-plus tail heights, the hydraulic door justifies its cost over time. The unrestricted opening eliminates the aircraft-choreography problem entirely. At scale — corporate flight departments, charter operators, maintenance facilities — that operational efficiency is real money.

Expect $800 to $2,500 per linear foot installed, depending on panel engineering, opening size, and local labor market. While you won’t need every dollar of that range, you will need a solid contingency budget for electrical work and concrete modifications the door quote won’t include.

Budget Builds and Agricultural Airstrips — Sliding

First, you should honestly assess your wall space situation — at least if you’re considering sliding doors. The math has to work before anything else does. If you have the room and budget is the primary constraint, sliding doors deliver a functional hangar door at the lowest entry cost.

Sliding might be the best option for hangars that double as equipment storage, as that configuration requires full-height clearance with no overhead mechanism. That is because sharing space with a tractor or implement means flexibility matters more than fast operation. Plan on track maintenance the installer won’t emphasize. Keep them clean, lubricated, and inspected twice a year. That’s the actual cost of the lower upfront price.

Cost per linear foot for sliding doors runs $150 to $450 installed, depending on motorization and panel weight.

One Final Note

Every major hangar door manufacturer — Schweiss, Assa Abloy, American Door, all of them — will tell you their product is the best fit. That’s their job. The airport manager at your field, the A&P who’s been working that ramp for twenty years, and the pilots with hangars right next to yours — those are the people worth talking to before you sign anything.

Get three quotes. Ask each contractor to walk you through their last five installs at airports similar to yours. And if a bifold quote comes in suspiciously low, ask what gauge steel the panels are. That’s usually where the money disappeared.

Door installations aren’t small decisions. The hardware will outlast two or three aircraft ownership cycles if you buy right. Buy right.
